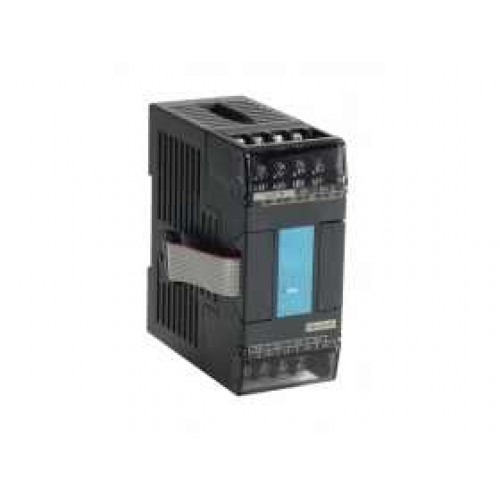

FBs-4A2D

FBs-4A2D

0ج.م
النوع : FBs-4A2D
حالة التوفر : 1
الكمية: + -

إضافة لرغباتي اضافة للمقارنة
Specification
FBs-4A2D
Input point
4 points
Output point
2 points
Input/Output value
-8192~8191 or 0~16383 (14-bit)
  Input/output
Signal range
Bipolar
Voltage: -10~10V or -5~5V Current: -20~20mA or -10~10mA
Unipolar
Voltage: 0~10V or 0~5V Current: 0~20mA or 0~10mA
Maximum resolution
Voltage: 0.3mV (5V/16384) Current: 0.61μA (10mA/16384)
Accuracy
±1%
Conversion time
Conversion once for each scan
Maximum input signal
Input voltage: ±15V Input current: ±30mA
Allowable load range
Output voltage: 500Ω~1MΩ Output current: 0~500Ω
Input impedance
Input voltage: 63.2KΩ Input current: 250Ω
Isolation method
Transformer(power) and photocouple(signal) isolation, 500VAC, 1 minute, no isolation between each channel
Power consumptio
24VDC –15%/+20%, 3.2W max.
Wiring mechanism
7.62 mm fixed terminal block
